Ideal for Foundations, BB Creams & Lip Balms
Engineered specifically for the color cosmetics industry, our vacuum emulsifier is designed to deliver outstanding performance in the production of high-viscosity, pigment-rich formulations such as liquid foundations, BB creams, CC creams, lip balms, and concealers.
With advanced homogenization and precise process control, this system ensures uniform pigment dispersion, smooth texture, and optimal gloss — meeting the high standards of premium cosmetic brands.
Key Features
- Capacities from 10L to 2000L, suitable for lab scale to full production
- Triple-phase design: main emulsifying vessel, water phase tank, and oil phase tank with dedicated heating and mixing
- High-shear homogenizer (3,000–9,000 rpm) for ultra-fine dispersion of pigments and waxes
- Anchor scraper agitator + optional high-speed disperser for high-viscosity processing
- Vacuum system for efficient deaeration and smooth, air-free texture
- Closed powder feeding via lid funnel or vacuum suction inlet
- PLC touch screen control with recipe storage and real-time monitoring
- CIP & optional SIP ports for hygienic operation
- GMP-compliant design, with mirror-polished SS316L contact surfaces
Technical Specifications – Color Cosmetics Vacuum Emulsifier
| Main Vessel (L) | Water Phase Vessel (L) | Oil Phase Vessel (L) | Homogenizer Power (kW) | Agitator Power (kW) | Heating Type | Vacuum System | Control System |
| 10 | 8 | 5 | 1.5 | 0.75 | Electric | Yes | Manual / Optional PLC |
| 20 | 16 | 10 | 2.2 | 0.75 | Electric | Yes | Manual / Optional PLC |
| 30 | 24 | 15 | 2.2 | 1.1 | Electric | Yes | Manual / Optional PLC |
| 50 | 40 | 25 | 3.0 | 1.5 | Electric / Steam | Yes | PLC + Touch Screen |
| 100 | 80 | 50 | 4.0 | 2.2 | Electric / Steam | Yes | PLC + Touch Screen |
| 200 | 160 | 100 | 5.5 | 3.0 | Steam (Standard) | Yes | PLC + HMI |
| 300 | 240 | 150 | 7.5 | 4.0 | Steam (Standard) | Yes | PLC + HMI |
| 500 | 400 | 250 | 11.0 | 5.5 | Steam (Standard) | Yes | PLC + HMI |
| 1000 | 800 | 500 | 15.0 | 7.5 | Steam (Standard) | Yes | PLC + HMI |
| 1500 | 1200 | 750 | 18.5 | 11.0 | Steam (Standard) | Yes | PLC + HMI |
| 2000 | 1600 | 1000 | 22.0 | 15.0 | Steam (Standard) | Yes | PLC + HMI |
Minimum working volume: approx. 30% of main vessel capacity
All contact materials: SS316L, Ra ≤ 0.4μm
Optional: Inline homogenizer, vacuum powder feeder, load cell dosing, perfume dosing, viscosity sensor, pH monitoring
Why Choose This Model?
This emulsifier is tailored for the challenges of color cosmetic manufacturing — from controlled melting of waxes to the uniform distribution of titanium dioxide and colorants. It supports consistent batch quality, faster production cycles, and easy cleaning between color changes.
|
|

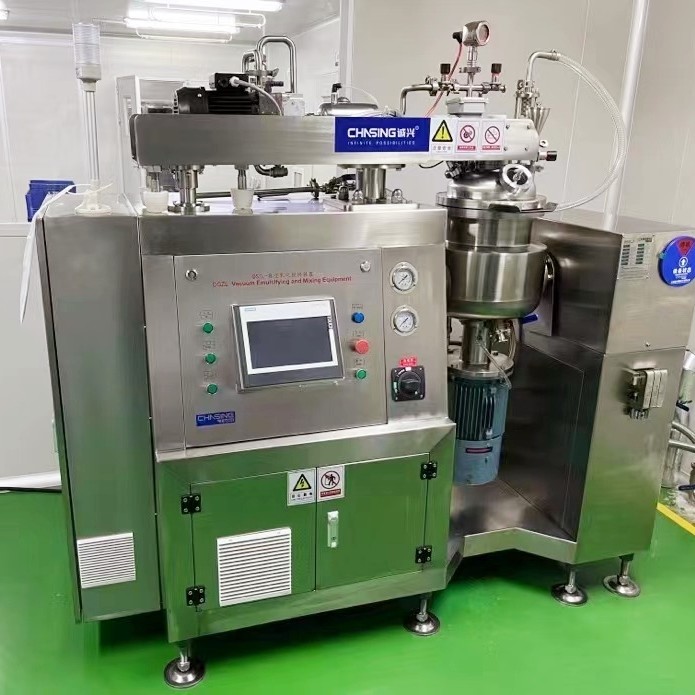

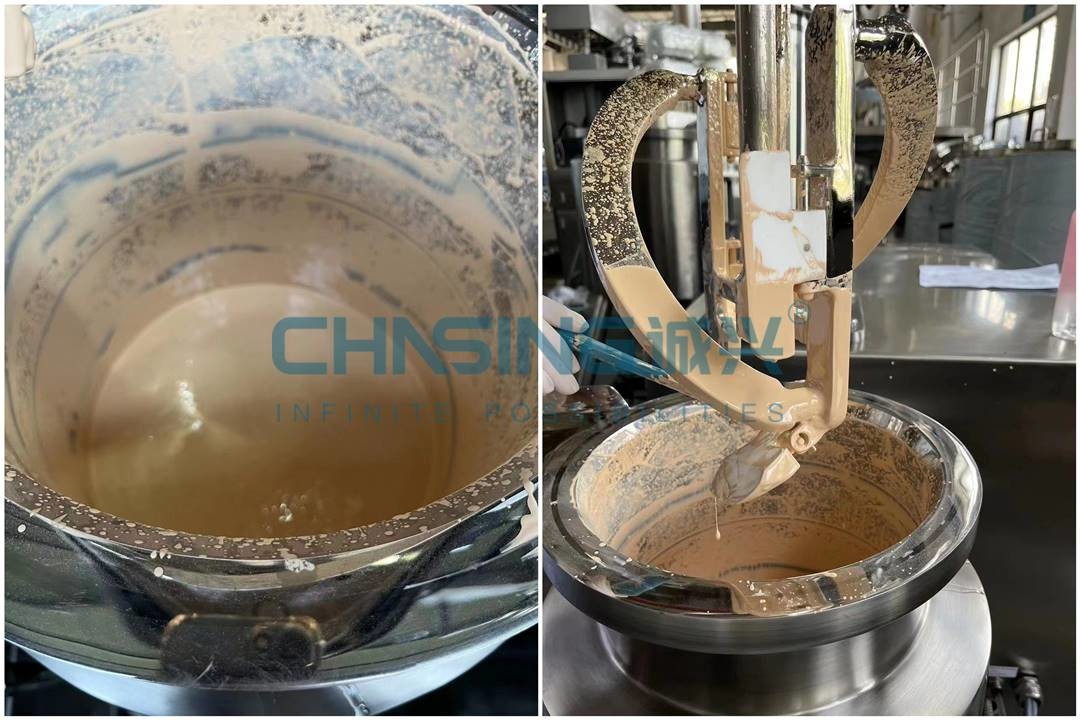

Vacuum Emulsifier for Color Cosmetics – Ideal for Foundations, BB Creams & Lip Balms Images
|
